| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | Rohs/CE/ISO9001 |
| Model Number: | PN-LB3Z |
| Minimum Order Quantity: | 40pcs |
| Packaging Details: | 40pcs/ctn |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 per month |
| Voltage: | 12V | Rocker Switch: | 3 |
|---|---|---|---|
| Stainless Steel Screw: | 4 | Nitrile Rubber Gasket: | 2.0mm*1 |
| Indication Label: | 45 | Electrical Wiring: | UL／1015 |
| Size Of Panel: | 130.0mm X100.0mm | Size Of Hole: | 107.0mm X82.0mm |
| Certification: | CE IP65 | Dimensions: | 96x114.5 Mm/3.78 X 4.51" (W X H) |
| Installation Size: | 72x86 Mm/2.83 X 3.39" (W X H) | Switch: | IP 68 ON-OFF Rocker Switches X 3 |
| Overload: | 5 A X 1 10 A X 1 15 A X 1 | Weight: | 292G |

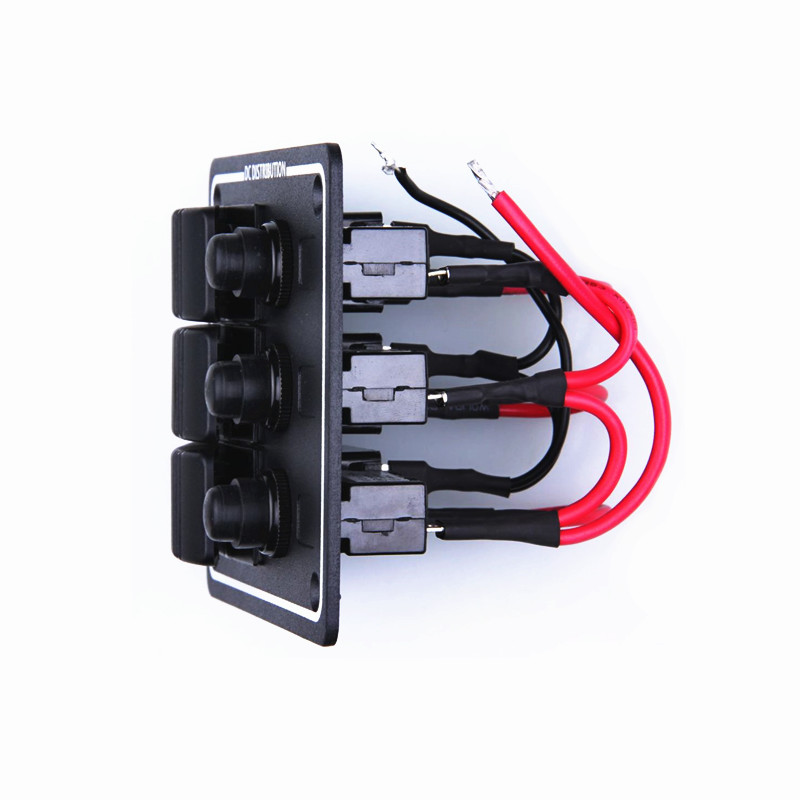

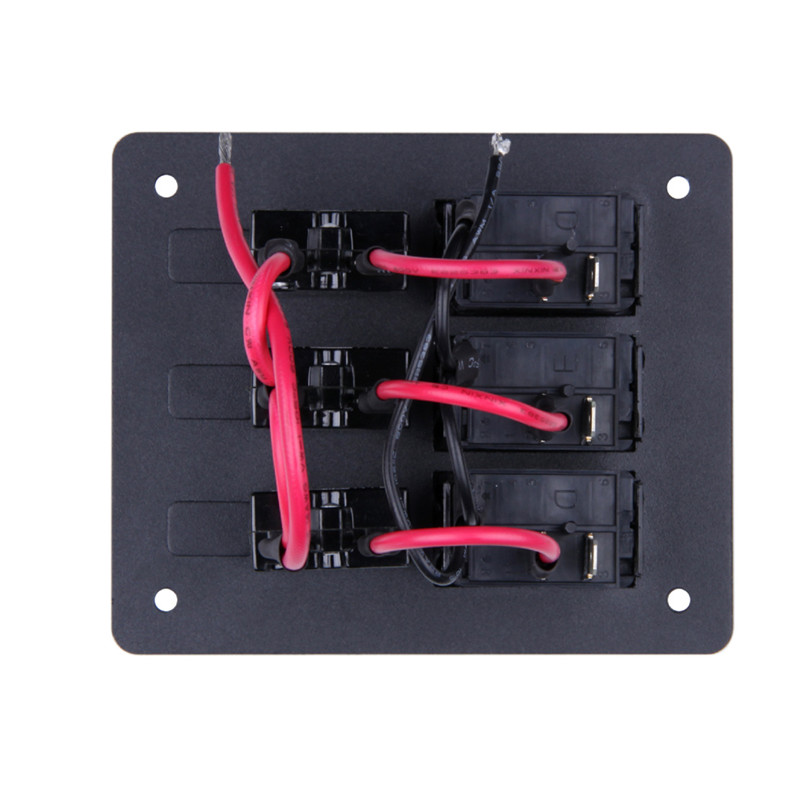

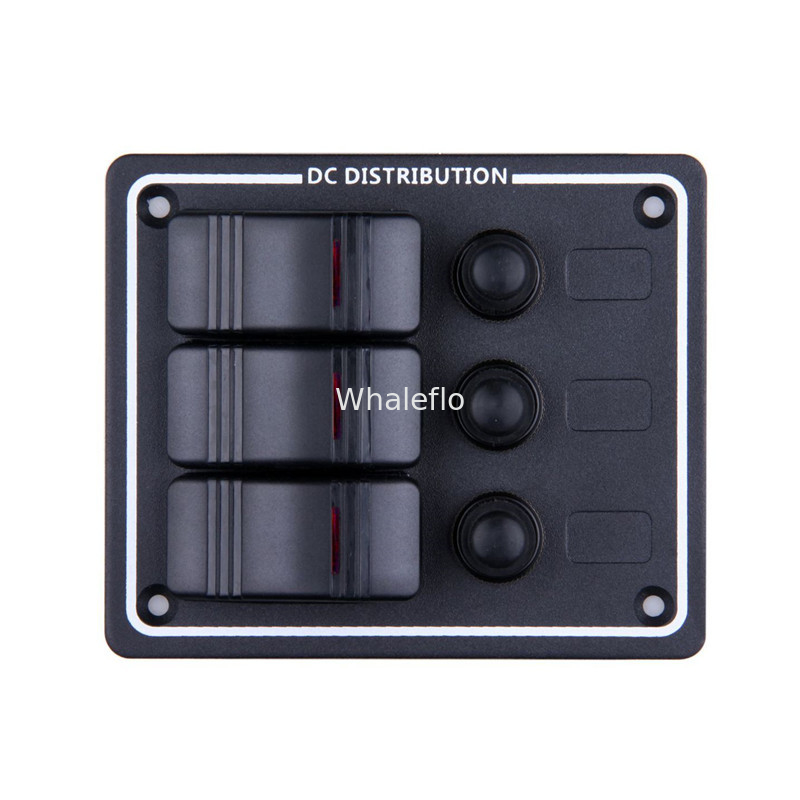

Whaleflo Boat Caravan Black 3 Gang LED Rocker Switch Panel DC12V Overload Protection Breakers Horizontal
|
Features: - High quality, made of ABS. - With rubber seal-cap to keep it water-tight, best for marine. - Overload protection - Splash-proof, anti-corrosion - Easy to install, can be installed horizontally or vertically.
|
Specifications:
- Model: PN-LB3Z
- Voltage: 12V
- Rocker Switch: 3
-Stainless Steel Screw x4
-Nitrile Rubber Gasket【2.0mm】 x1
-Indication Label x45
-Electrical wiring【 UL／1015】
-Size of Panel:130.0mm x100.0mm
-Size of Hole: 107.0mm x82.0mm
-Certification:CE IP65
- Dimensions: 96x114.5 mm/3.78 X 4.51" (W x H)
- Installation size: 72x86 mm/2.83 X 3.39" (W x H)
- Material: Plastic
- Switch: IP 68 ON-OFF rocker switches x 3
- Overload: 5 A x 1 10 A x 1 15 A x 1
- Weight: 292 g
