| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE / ROHs /FCC |
| Model Number: | WEL2460-30 |
| Minimum Order Quantity: | 100 |
| Price: | 76USD/pc |
| Packaging Details: | 1 piece in a box |
| Delivery Time: | 5-25working days |
| Payment Terms: | L/C at sight, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 10000 per month |
| Pump Design: | Positive Displacement 3 Chamber Diaphragm Pump | Motor: | Permanent Magnet,Thermally Protected |
|---|---|---|---|
| Voltage: | 12V/24V | Max Lift: | 100M |
| Materials: | Stainless Steel Body |

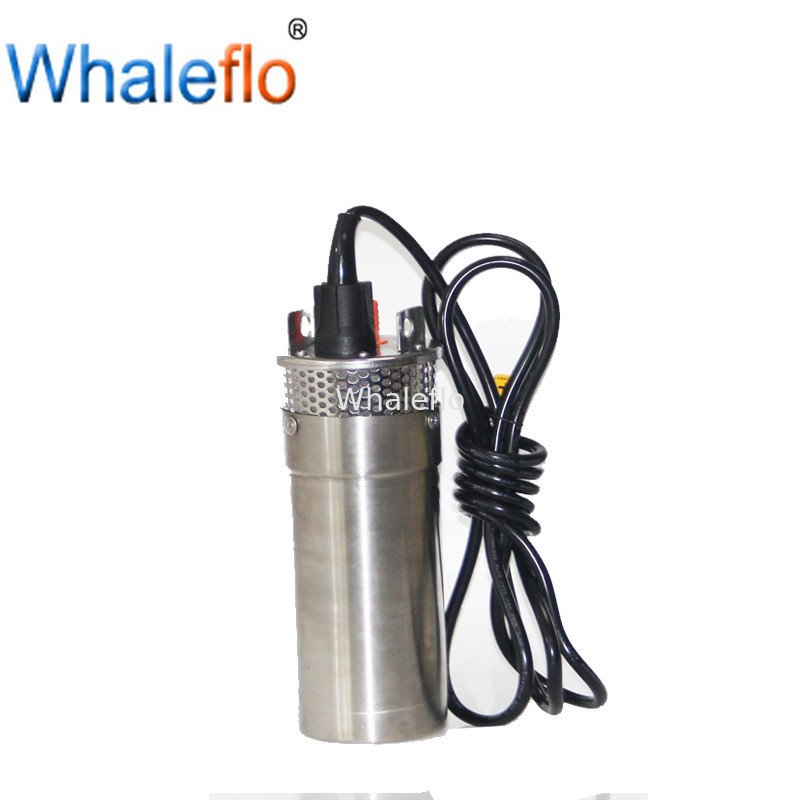

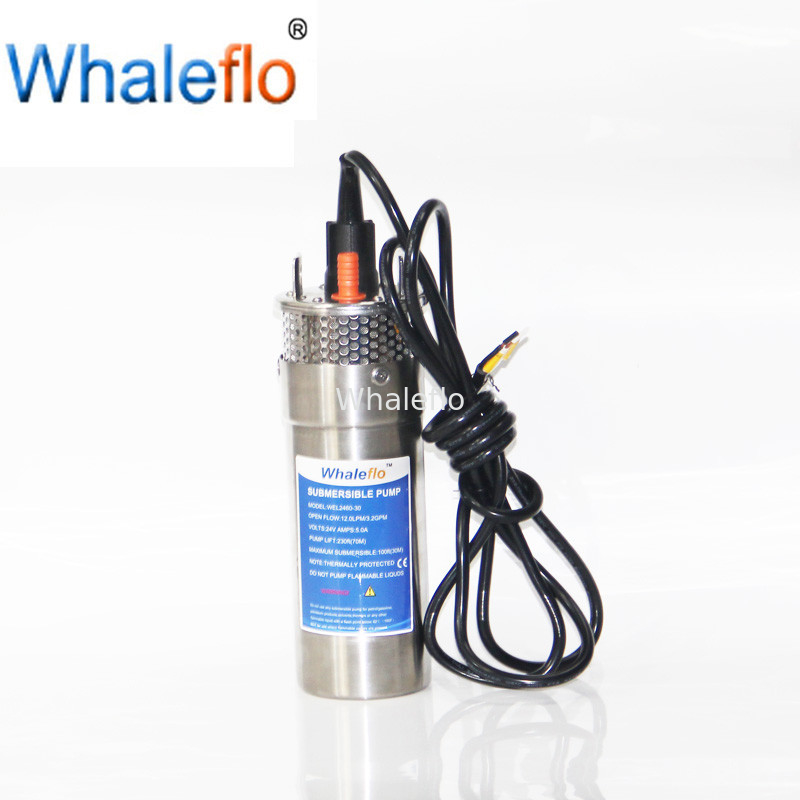

The solution to your remote water pumping needs. This pump is rugged.durable and builtto last. This pump delivers a steady 189GPH(720LPH) at its maximum depth of 100m when supplied with 12VDC. Its unique water-tight power connector stops water wicking and prevents potential condensation problems. Great for livestock watering,irrigation,
pondaeration,remote homes and cabins.
Application
Designed to use with solar panels and 24V battery systems for livestock watering, irrigation, ponds, remote homes and cabins.
The submersible pump is the solution to your remote water pumping needs. This pump is rugged, durable and built to last.
Its unique water-tight power connector stops water wicking and prevents potential condensation problems.
Great for livestock watering, irrigation, pond areation, remote homes and cabins - any place where potable water is needed.
Solar submersible pumps can solve your long-distance water trouble, which is a sturdy and durablewater pump, it can at a maximum depth of 70 meters for your continued to provide 3 to 6 liters / minute of water flow, generally used for outdoor long-range water operating.
* Solar-powered submersible pump suitable for wells with a 4 inch diameter or larger.
*Designed to be strong and yet lightweight.
*Wide-range of parts and kits for ease of rebuilding and repair.
Features&Benefits
Pump:
*Strong Construction, yet lightweight.
*Dry Running capability without pump damage.
*Internal Bypass Feature for pump protection.
*Long-life,24VDC Operation.
*Easily repaired in the field.
*State of the art solid diaphragm.
Power Connector:
*Unique water-tight gland connector.
* Stops water wicking and prevents potential condensation.
*Quick Discounnect-No splicing necessary.
*Accepts a variety of jacketable cables.
| Pump Design | Positive Displacement 3 Chamber Diaphragm Pump |
| Motor | Permanent Magnet, Thermally Protected |
| Voltage | 24V / 12V DC Nominal |
| Voltage | 24V / 12V DC Nominal |
| Internal Bypass | 105-110PSI Max.(7.2-7.5 BARS) |
| Maximum Lift | 100m Maximum |
| Maximum Submerion | 100Feet Maximum (30m) |
| Outlet Port | 1/2''(12.7mm) Barbed Fitting for 1/2'' (12.7mm) I.D.Tubing |

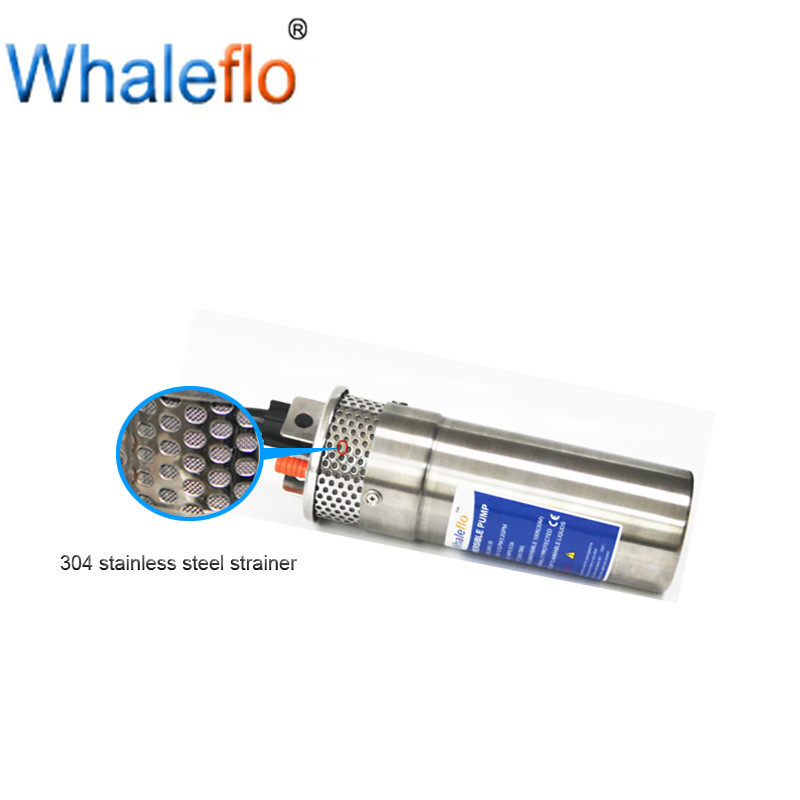

| Inlet | 50 Mesh Stainless Steel screen |
| Material | High Strength Engineered Plastics, Stainless Steel Fasteners |
| Model | Volt | Flow rate | lift(m) | Amps | Body cover |
| WEL2440-30 | 24V | 6.0LPM(360LPH) | 70 | 4.0A | Plastic body |
| WEL1240-30 | 12V | 6.0LPM(360LPH) | 70 | 8.0A | Plastic body |
| WEL2460-30 | 24V | 12.0LPM(720LPH) | 100 | 5.0A | Stainless steel body |
| WEL1260-30 | 12V | 12.0LPM(720LPH) | 100 | 10.0A | Stainless steel body |
| A | Life Plate |
| B | Cable Plug Kit |
| C | Valve Kit |
| D | Lower Housing Assembly Kit |
| E | Motor Kit |
| F | Canister Kit |
| G | Filter Screen Kit |
| H | O-ring Kit |
Application:
Applications
Livestock drinking water, irrigation, pond water change, remote home and small log cabin water supply
Sample order is welcome testing.
