| Place of Origin: | China |
|---|---|
| Brand Name: | Whaleflo |
| Certification: | CE,RoHs |
| Model Number: | WELBP-3000-12/24V |
| Minimum Order Quantity: | 8 |
| Price: | USD19.88-25/pc |
| Packaging Details: | 1pcs per box, 20pcs in a carton |
| Delivery Time: | 7-15 WORK DAYS |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Volt: | 12V/24V DC | Flow Rate: | 3000GPH |
|---|---|---|---|
| Head: | 8M | Current: | 12V/12A,24V/8A |
| Wire: | 100cm | Outlet Dia: | 40mm |

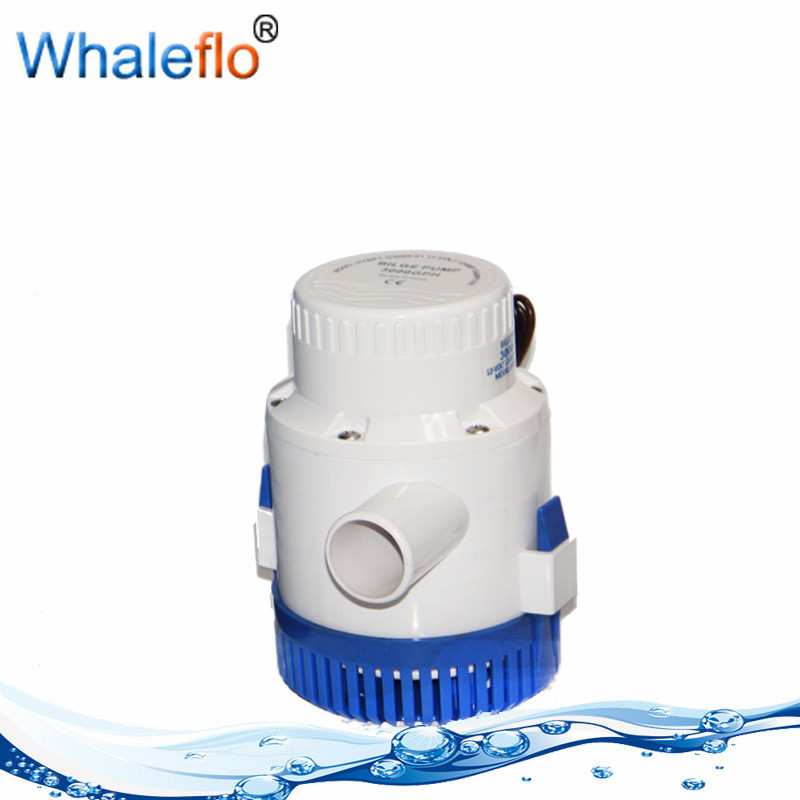

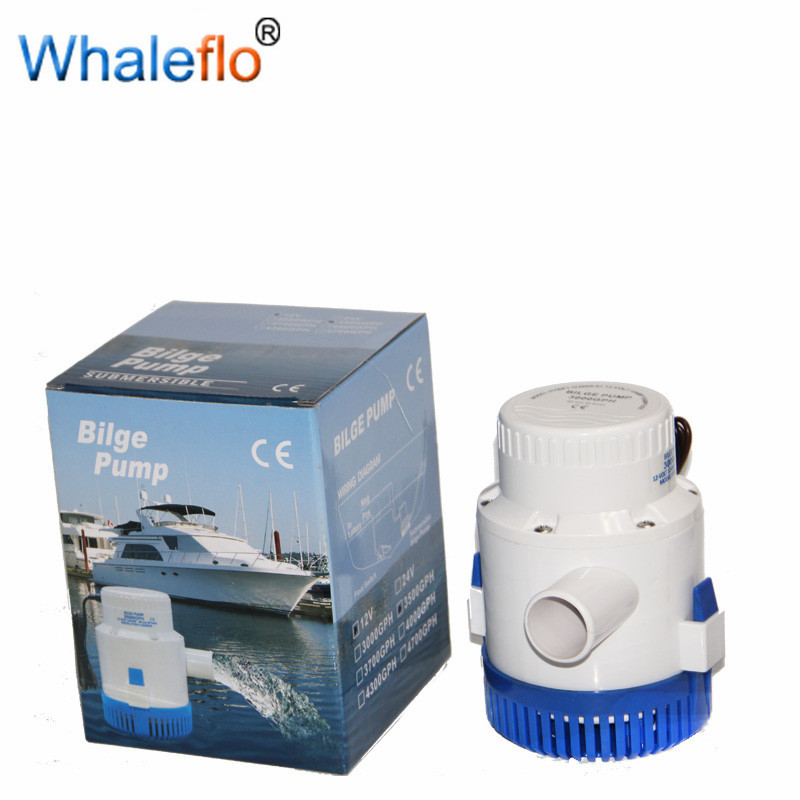

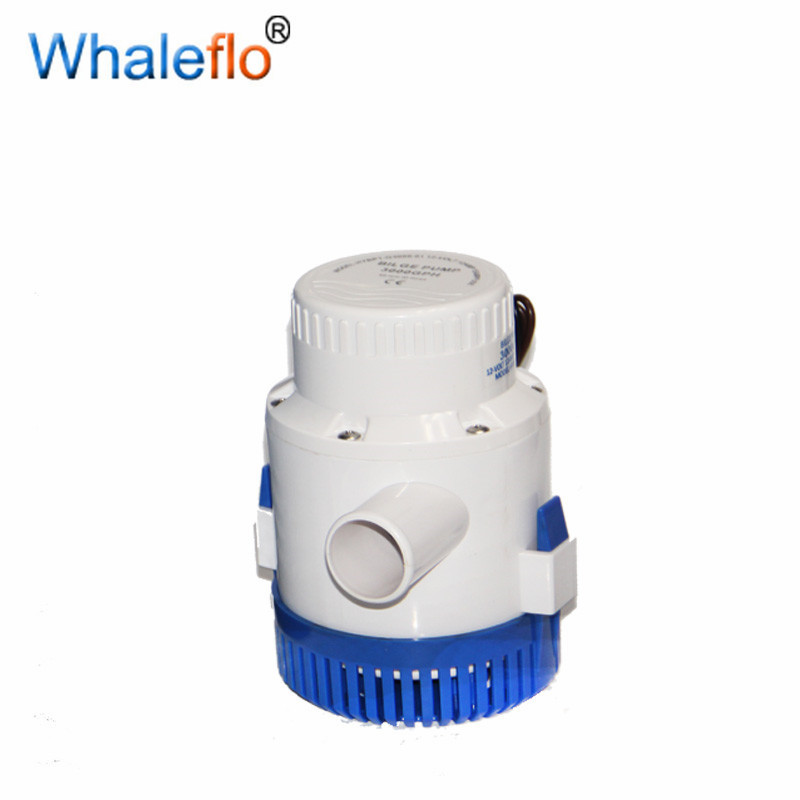

Whaleflo High Flow Rate 3500 GPH Water System Philippines Agricultural Pump for Agriculture Irrigation
WHALEFLO Non-automatic bilge pumps offer traditional operation activated by a float or panel switch.
Removal of the motor cartridge allows for easy cleaning of the strainer and impeller in the event that the pump becomes clogged with debris.
Electric Submersible Pumps are by far the most popular type of electric Bilge Pumps, submersibles give very high outputs, and cost effective,
have low amp draw and are easy to install. They are designed to fit in the lowest part of the bilge and only require discharge pipe work and
electricity supply. Also can be used in other applications like transfer river water, work together with solar panel or battery.
Dimensions
| Model | Flow Rate | Volts | Current | Head | Wire Lead | Outlet Dia | N.W/G.W |
| SFBP3500-12 | 3500GPH | 12V | 12.0A | 8.0M | 1M | 40mm | 2.10/2.37kg |
| SFBP3500-24 | 3500GPH | 24V | 8.0A | 8.0M | 1M | 40mm | 2.10/2.37kg |
FEATURES
Bilge pump is popular use for marine,boat,RV,camper,industrial, etc.
Heavy duty motors with stainless steel shafts and tough thermoplastic bodies.
Totally submersible and ignition protected.
To all existing safety standards.
Water cooled motors for long life, with anti airlock design and moisture tight seals.
Snap-lock strainer base for easy installation and removal, and silent vibration free running
Includes comprehensive user manual with installation instructions
| Model | Volt | FLow | Current | Head | Wire | Outlet Dia | N.W/G.W |
| WELBP1-G-3000-01 | 12V DC | 3000GPH | 10.0A | 8M | 100CM | 40MM | 2.4KG |
| WELBP2-G-3000-01 | 24V DC | 3000GPH | 6.0A | 8M | 100CM | 40MM | 2.4KG |
| WELBP1-G-3500-01 | 12V DC | 3500GPH | 12.0A | 8M | 100CM | 40MM | 2.4KG |
| WELBP2-G-3500-01 | 24V DC | 3500GPH | 8.0A | 8M | 100CM | 40MM | 2.4KG |
| WELBP1-G-3700-1 | 12 | 3700GPH | 16.0A | 8m | 1.0m | 40 mm/1-1/2″ | 2.1/2.37kgs |
| WELBP2-G-3700-1 | 24 | 3700GPH | 10.0A | 8m | 1.0m | 40 mm/1-1/2″ | 2.1/2.37 kgs |
Technical date:
Application
Working drawing:
Certificate
FAQ
Q: Are you a manufacturer or trading company?
Our plant covers 10000 square meters with full set of automative production lines and integrated testing facilities. Our sales depart located in Xiamen, China.
Q: What's your main products of your company?
A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm
pump,Marine pump,RV pump, bilge pump )for over 8 years with excellent quality and competitive price.
Q. What is your MOQ?
Our company is pleasure accept all items 1pcs order for testing.If bulk order, pls send inquiry to get more discount.
Q. What about the delivery time?
A.The stock samples can be sent to you within 2-3days by international express after received
A.The batch order can be shipped to you in about 15-20 working days after order confirmation (by air or by sea
Q. Can I buy different types in one container?
A:Yes, you can mix different types in one container.
Q.How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application, pump working duty and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.If you don’t know the details for the pump, tell us the usage, must suitable model will be recommended
Q.Do you accept OEM/ODM
A:Yes. We are also the OEM supplier of many famous companies.
Q. What is your terms of payment.
A:Usually we accept T/T , Alipay ,Western Union or PayPal.
Q. What is your warranty?
A:24month warranty and 2% spare parts after service, and within 24 hours reply will be provided to solve customers’ problems.
Q. What is your port of loading?
A: Xiamen Port.
Sample order is welcome
