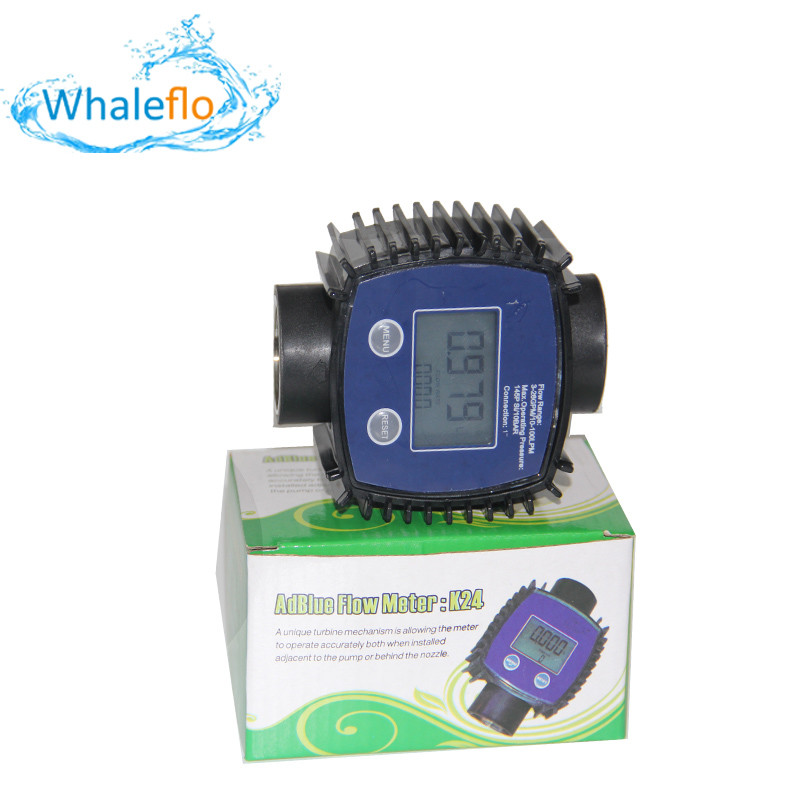

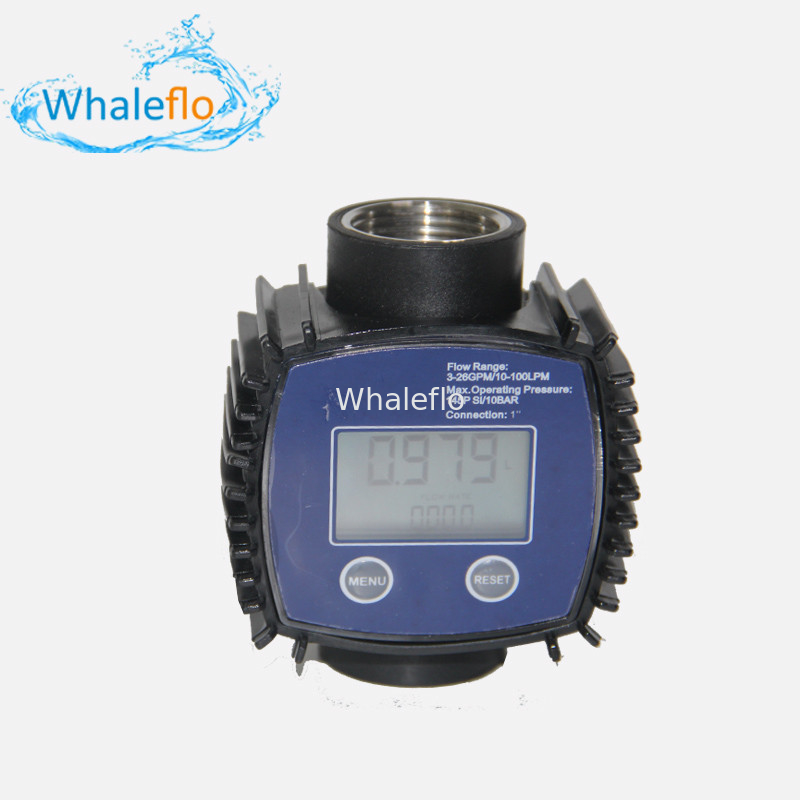

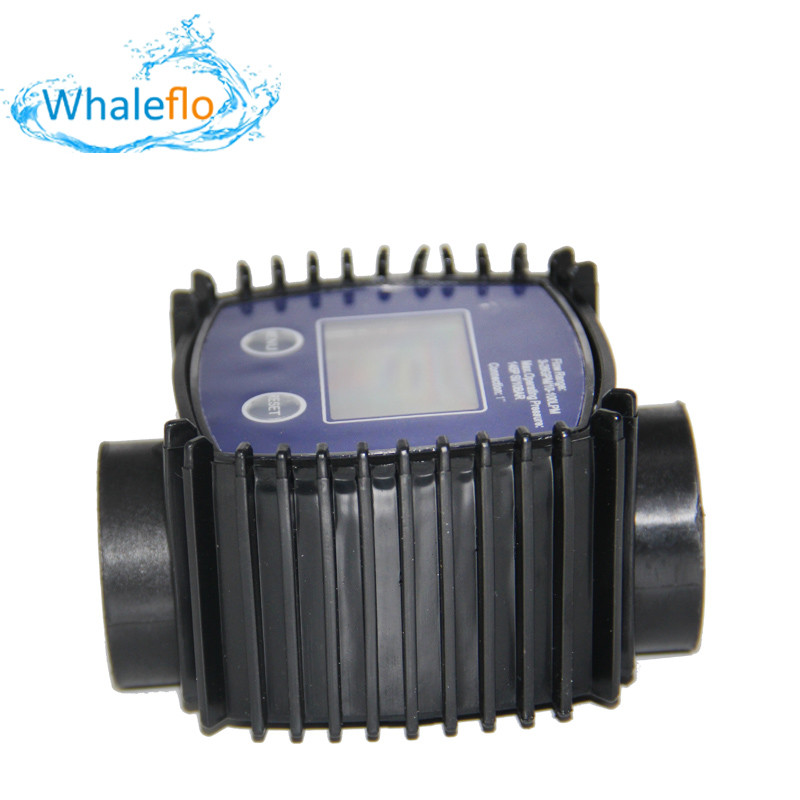

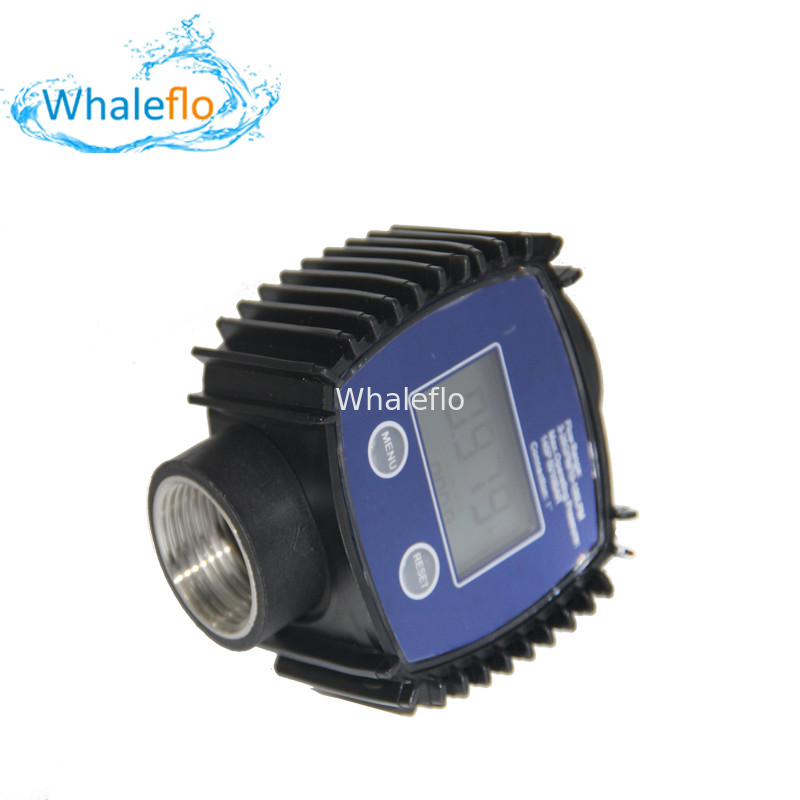

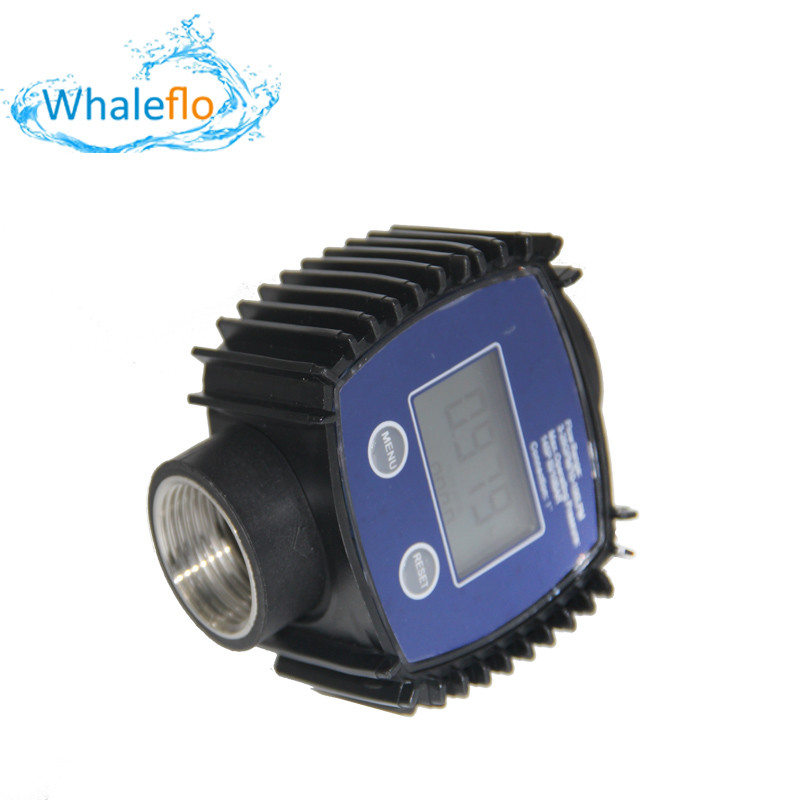

Whaleflo K24 1'' Low Cost Flow Meter Digital Display Meter Turbine Flow Meter

Basic Information

Place of Origin:	China
Brand Name:	Whaleflo
Model Number:	K24

Minimum Order Quantity:	50
Price:	38USD/pc
Packaging Details:	1pc/box
Delivery Time:	7-15 WORK DAYS
Payment Terms:	L/C, Western Union, MoneyGram, T/T,Paypal

Contact Now

Model Number:	K24	Type:	Variable Area Oil Flowmeters, Inline Turbine Meter
Product Name:	K24 Flow Meter	Application:	For Diesel Oil, Kerosene, Chemicals, Gasoline, Methanol, Water, Urea
Material:	Polyamide Body, Polypropylene Gears ,Viton Seals, Stainless Steel	Flow Range:	10-120L/min
Accuracy:	±1%	Pressure:	20Bar
Temperature Range:	From -10 ℃-50 ℃	Connections:	1" BSP(M/F)
Display:	5 Digit Reset(10mm) 6 Digit Non-reset(6mm)

Whaleflo K24 Fuel Flowmeter Adblue

BENEFITS

- Gallon or Liter Option

-PPC body

-Also for chemical industry, medicine and other corrosive medium measurement

-High accuracy, Duarble, Compact

-Easy maintenance

-Two cumulants(resetting, and accumulating)

Inline Electronic Flow Meter :: K24

Name: Whaleflo K24 1'' Low Cost Flow Meter Digital Display Meter Turbine Flow Meter
Brand: Whaleflo
SKU: K24
Price: 38 USD
Availability: InStock
Rating: 5 (128 reviews)

The K24 is a diverse low cost flow meter suitable for the measurement of Diesel, Gas Oil ,kerosene, chemicals, gasoline, methanol, water, urea, etc

Specification

Flow Range	5~120 litre/min
Accuracy	±1%
Pressure (max)	10 Bar
Temp Range	-10°C to +50°C
Connections	1" BSP M c/w Socket
Display	5 Digit Reset (10mm)
	6 Digit Non-Reset (6mm)
Increments	0.1 litre
Protection	IP65
Power	2x 1.5v 'AAA'
	18 ~ 36 months
