| Place of Origin: | China |
|---|---|
| Brand Name: | Growatt |
| Certification: | all |
| Model Number: | SPF3000TL HVM-24 |
| Minimum Order Quantity: | 5pcs |
| Price: | 50$ |
| Packaging Details: | carton box |
| Delivery Time: | 7-15 days after confirmed |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000pcs/month |
| Application: | Perfect For Off-grid , Backup Power And Self-consumption Applications. | Battery Voltage: | 24v Dc |
|---|---|---|---|
| Battery Type: | Lithium/Lead-acid | INVERTER OUTPUT: | 3000VA/ 3000W |
| Parallel Capability: | No | AC Voltage Regulation: | 230VAC ± 5%@50/60Hz |
| Surge Power: | 6000VA | Efficiency (Peak): | 93% |
| Waveform: | Pure Sine Wave | Transfer Time: | 10ms Typical, 20ms Max |
| Max. Recommended PV Power: | 1500W | MPPT Range @ Operating Voltage: | 30VDC ~ 80VDC |
| Maximum PV Array Open Circuit Voltage: | 102v DC | Number Of Independent MPP Trackers/ Strings Per MPP Tracker: | 1/1 |
| Maximum Solar Charge Current: | 50A | Maximum Efficiency: | 98% |
| AC CHARGE CURRENT: | 30A | AC Input Voltage: | 230VAC |
| Selectable Voltage Range: | 170-280 VAC (For Personal Computers) ; 90-280VAC (For Home Appliances) | Frequency Range: | 50Hz/60Hz (Auto Sensing) |
| Protection Degree: | IP20 | Dimension (W/H/D): | 315/400/130mm |
| Net Weight (kgs): | 8.5kg | OPERATING ENVIRONMENT: | Humidity 5% To 95% Relative Humidity(Non-condensing) |
| Altitude: | <2000m | Operating Temperature: | 0°C - 55°C |
| Storage Temperature: | -15°C - 60°C |

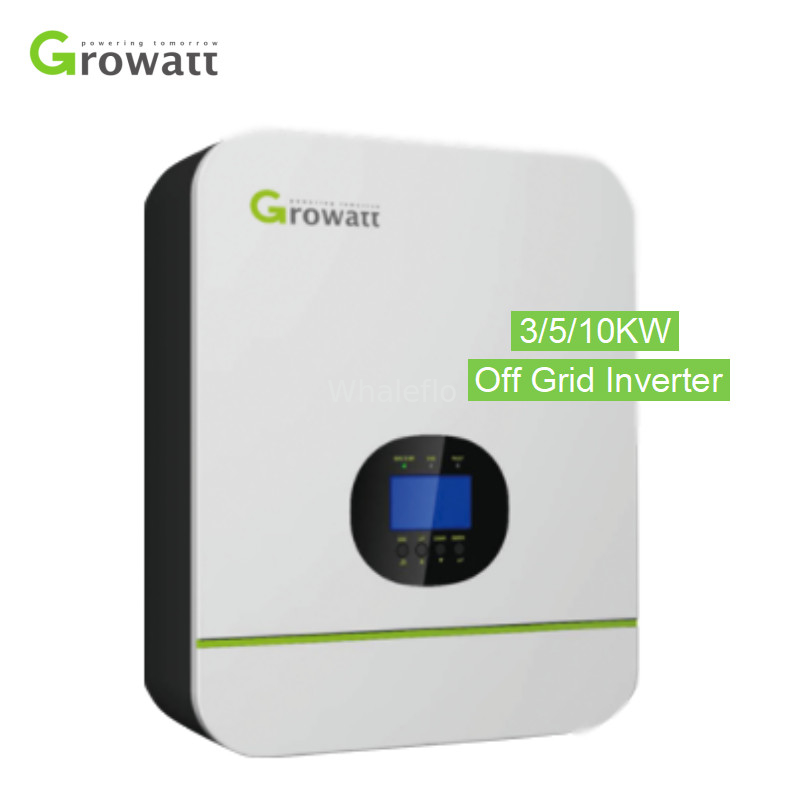

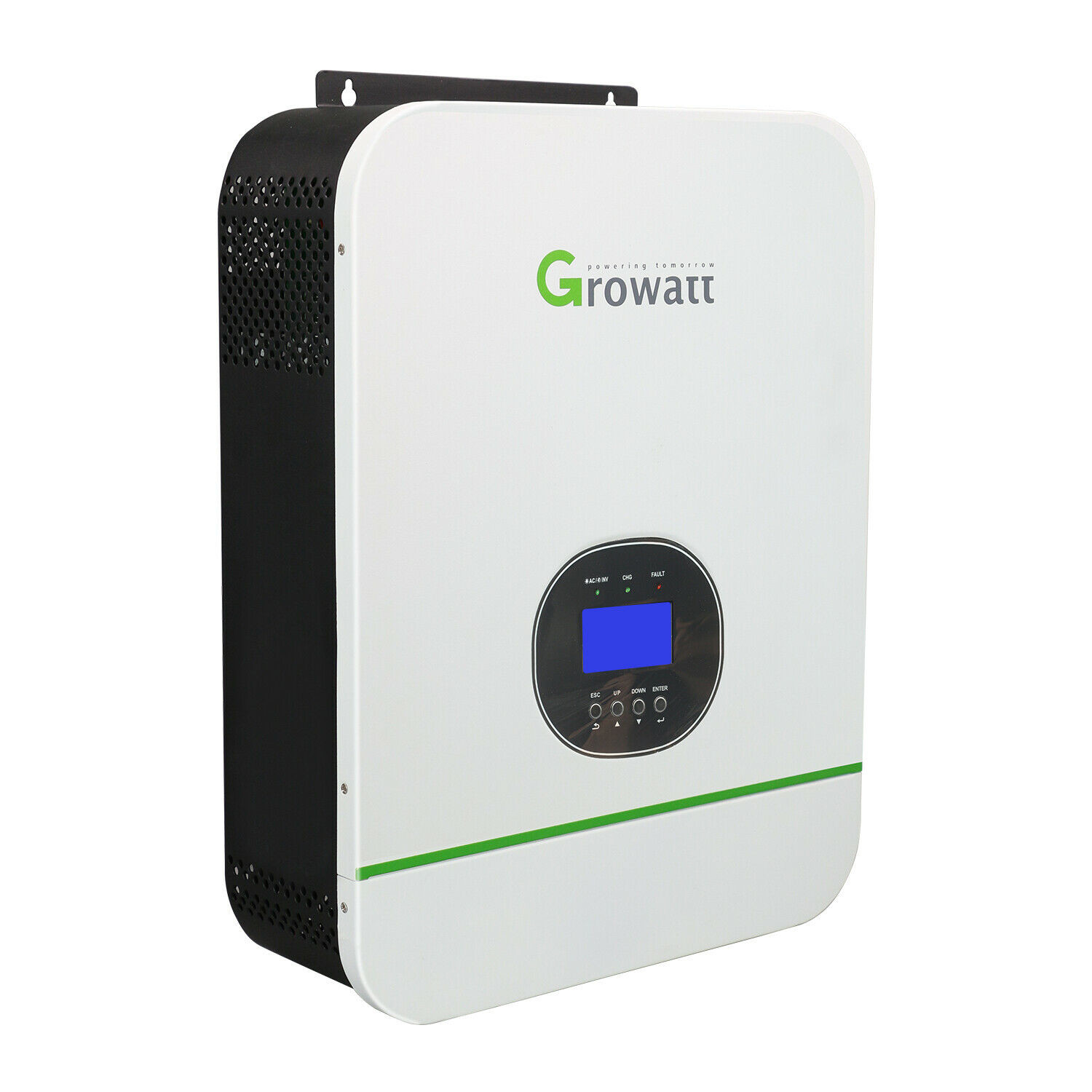

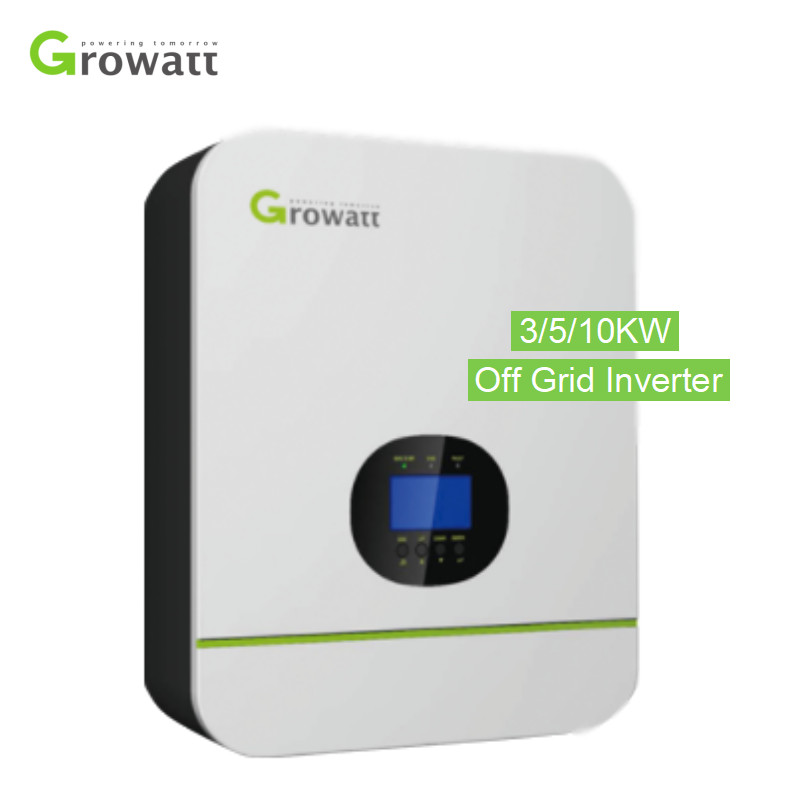

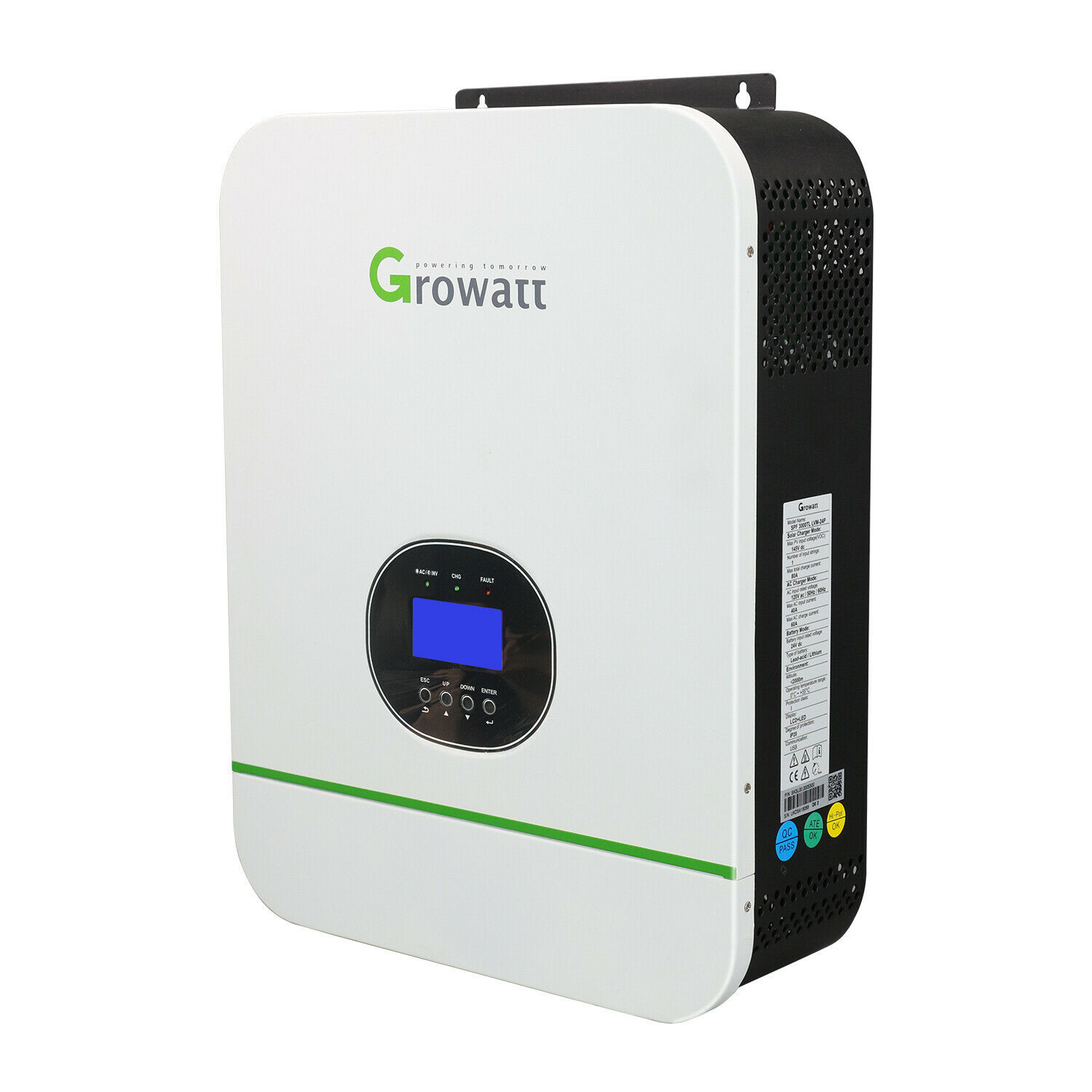

Growatt SPF series off-grid solar inverter is integrated with an MPPT solar charge controller, a high-frequency pure sine wave inverter, and a UPS function module in one machine, which is perfect for off-grid backup power and self-consumption applications.
The transformerless design provides reliable power conversion in a compact size. Besides, it's worry-free to start up motor-type loads such as motors, water pumps, and compressors as well as the common home device. Growatt SPF 4KW/5KW can be wired in parallel to increase the output capacity
