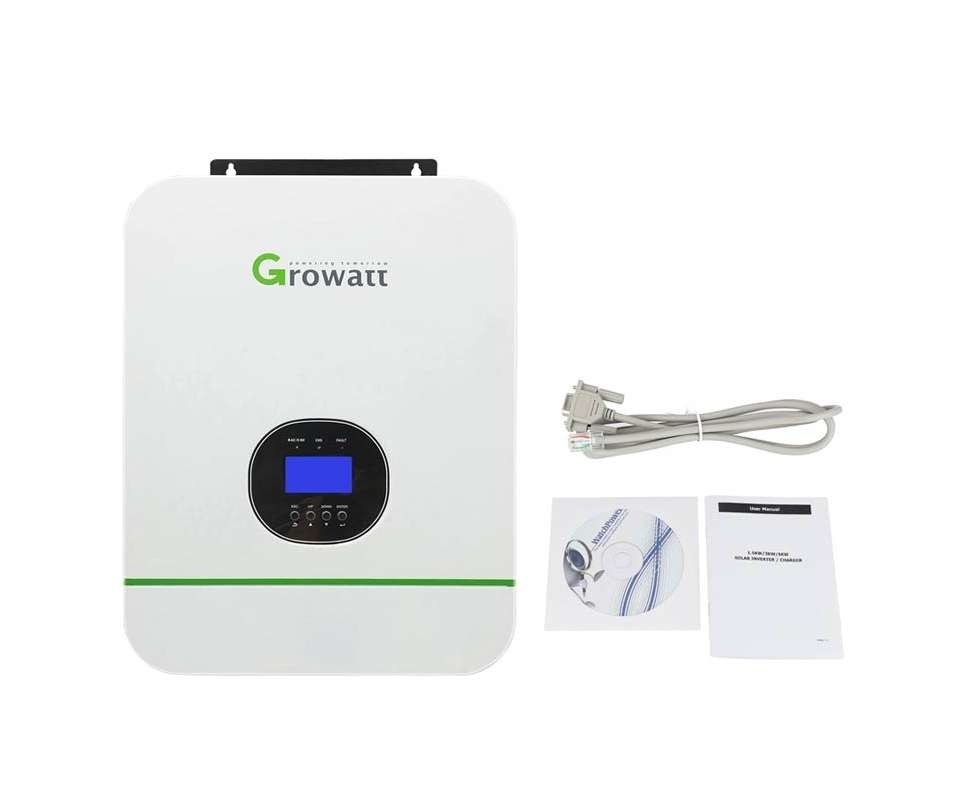

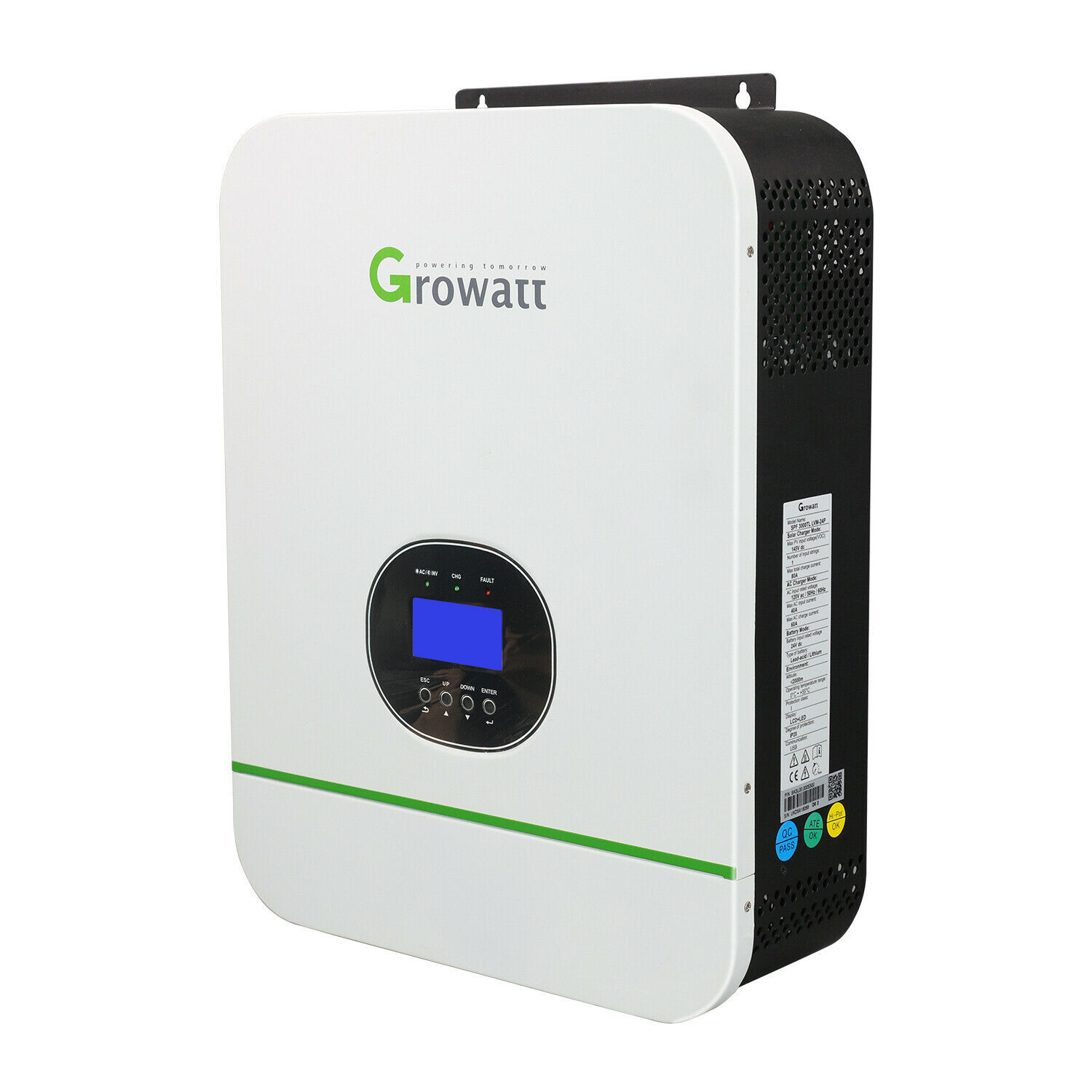

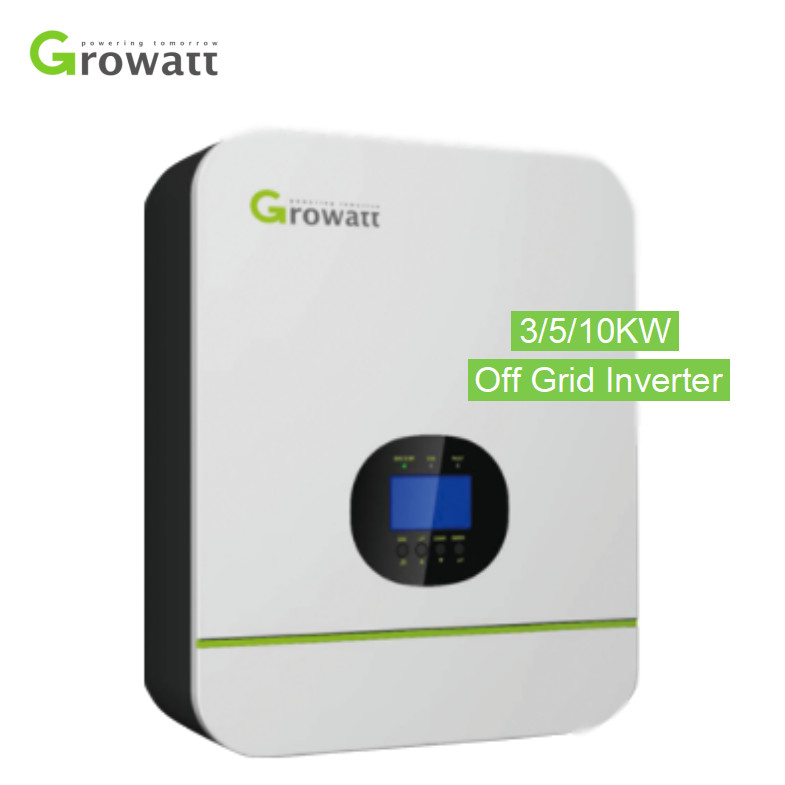

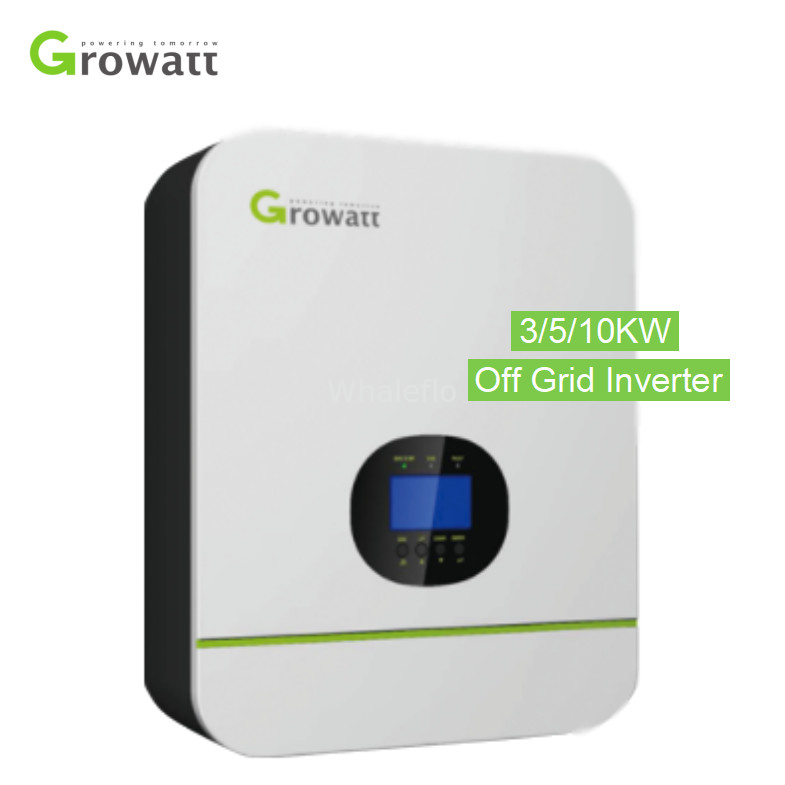

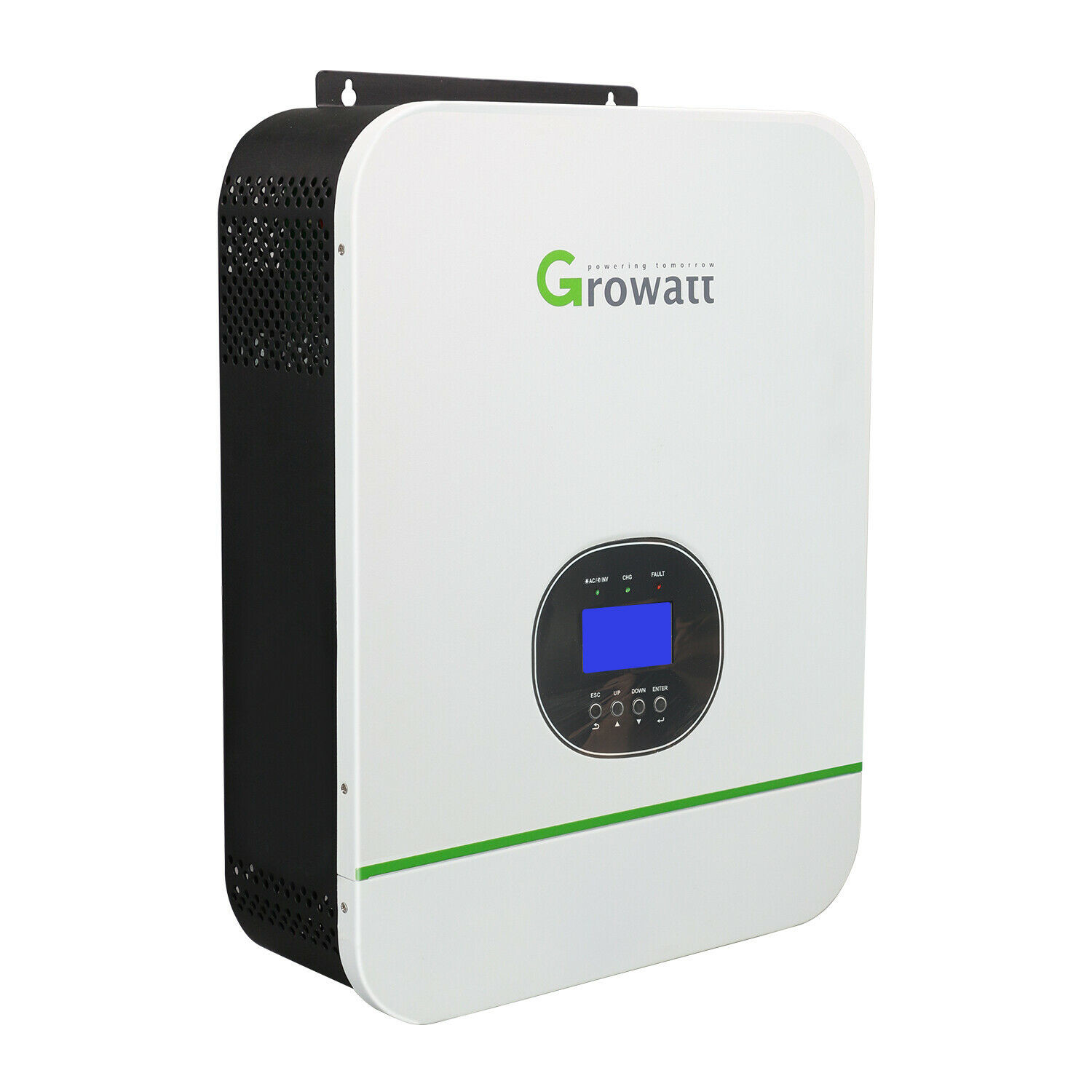

Growatt Inverter 48V Off Grid Solar Inverter 5000w Single Phase Inverter SPF5000TL HVM

Growatt Inverter 48V Off Grid Solar Inverter 5000w Single Phase Inverter SPF5000TL HVM
Growatt Inverter 48V Off Grid Solar Inverter 5000w Single Phase Inverter SPF5000TL HVM Growatt Inverter 48V Off Grid Solar Inverter 5000w Single Phase Inverter SPF5000TL HVM Growatt Inverter 48V Off Grid Solar Inverter 5000w Single Phase Inverter SPF5000TL HVM Growatt Inverter 48V Off Grid Solar Inverter 5000w Single Phase Inverter SPF5000TL HVM
Basic Information
Place of Origin: China
Brand Name: Growatt
Certification: all
Model Number: SPF5000TL HVM
Minimum Order Quantity: 5pcs
Price: 50$
Packaging Details: carton box
Delivery Time: 7-15 days after confirmed
Payment Terms: T/T, Western Union
Supply Ability: 10000pcs/month
Contact Now
Application: Perfect For Off-grid , Backup Power And Self-consumption Applications. Battery Voltage: 48v Dc
Battery Type: Lithium/Lead-acid INVERTER OUTPUT: 5000VA/5000W
Parallel Capability: No/Yes,6 Units Maximum AC Voltage Regulation: 230VAC ± 5%@50/60Hz
Surge Power: 10000VA Efficiency (Peak): 93%
Waveform: Pure Sine Wave Transfer Time: 10ms Typical, 20ms Max
Max. Recommended PV Power: 4500W Number Of Independent MPP Trackers/ Strings Per MPP Tracker: 1/1
Maximum Solar Charge Current: 80A Maximum Efficiency: 98%
AC CHARGE CURRENT: 60A AC Input Voltage: 230VAC
Selectable Voltage Range: 170-280 VAC (For Personal Computers) ; 90-280VAC (For Home Appliances) Frequency Range: 50Hz/60Hz (Auto Sensing)
Protection Degree: IP20 Dimension (W/H/D): 350/455/130mm
Net Weight (kgs): 11.5kg OPERATING ENVIRONMENT: Humidity 5% To 95% Relative Humidity(Non-condensing)
Altitude: <2000m Operating Temperature: 0°C - 55°C
Storage Temperature: -15°C - 60°C MPPT RANGE@operating Voltage: 60VDC -115V DC
Maximum PV Array Open Circulate: 145V DC

Growatt European Version Off-grid Singel phase residential inverter 3000w 5000w SPF 3000TL HVM-24 SPF 5000TL HVM

Growatt SPF series off-grid solar inverter is integrated with an MPPT solar charge controller, a high-frequency pure sine wave inverter, and a UPS function module in one machine, which is perfect for off-grid backup power and self-consumption applications.
The transformerless design provides reliable power conversion in a compact size. Besides, it's worry-free to start up motor-type loads such as motors, water pumps, and compressors as well as the common home device. Growatt SPF 4KW/5KW can be wired in parallel to increase the output capacity

Growatt Inverter 48V Off Grid Solar Inverter 5000w Single Phase Inverter SPF5000TL HVM 0



Off-Grid Inverter

US/EU standard: Single Phase 110/120/220/230/240VAC; Split Phase 120/240VAC; 110/220VAC
The integrated MPPT charge controller

Optional WFIV GPRS remote monitoring

Built-in pure copper low-frequency transformer

Configurable grid or solar input priority

Wifi/GPRS Monitoring Optional
Growatt Inverter 48V Off Grid Solar Inverter 5000w Single Phase Inverter SPF5000TL HVM 1
Technical Specification
Datasheet
SPF 2000TL-HVM-24
SPF3000TL-HVM-24
SPF 2000TL-HVM-48
SPF 3000TL
HVM-48
SPF 5000TL
HVM/HVM-P
Battery voltage
24V DC
48V DC
Battery type
Lithium/Lead-acid
INVERTER OUTPUT
Rated power
2000VA/2000W
3000VA/3000W
2000VA/2000W
3000VA/3000W
5000VA/5000W
Paralell capability
NO
NO/YES
6units MAX
Surge power
4000VA
6000VA
4000VA
6000VA
10000VA
Efficiency(peak)
93%
Waveform
Pure sine wave
Transfer time
10ms typical,20ms max
SOLAR CHARGER
Maximum pv array power
1500W
1800W
4500W
MPPT range
30V-80V DC
60-115V DC
Maximum pv array open circuit voltage
102V DC
145V DC
Numbers of independent mppt trackers/strings per mppt tracker
1/1
Maximum solar charge current
50A
30A
80A
Maximum efficiency
96%
AC CHARGER
Charge Current
30A
15A
60A
AC Input Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range
50Hz/60Hz (Auto sensing)
PHYSICAL
Protection Degree
IP20
Dimension (W/H/D)
315/400/130mm
350/455/130mm
Net Weight (kgs)
8
8.5
8
8.5
11.5
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative
Humidity(Non-condensing)
Altitude
<2000m
Operating Temperature
0°C - 55°C
Storage Temperature
0°C - 55°C
Growatt Inverter 48V Off Grid Solar Inverter 5000w Single Phase Inverter SPF5000TL HVM 2


APPLICATION

Growatt Inverter 48V Off Grid Solar Inverter 5000w Single Phase Inverter SPF5000TL HVM 3 Integrated MPPT charge controller
Growatt Inverter 48V Off Grid Solar Inverter 5000w Single Phase Inverter SPF5000TL HVM 4 Configurable grid or solar input priority
Growatt Inverter 48V Off Grid Solar Inverter 5000w Single Phase Inverter SPF5000TL HVM 5 Optional WIFI/ GPRS remote monitoring
Growatt Inverter 48V Off Grid Solar Inverter 5000w Single Phase Inverter SPF5000TL HVM 6 Parallel for scalability
